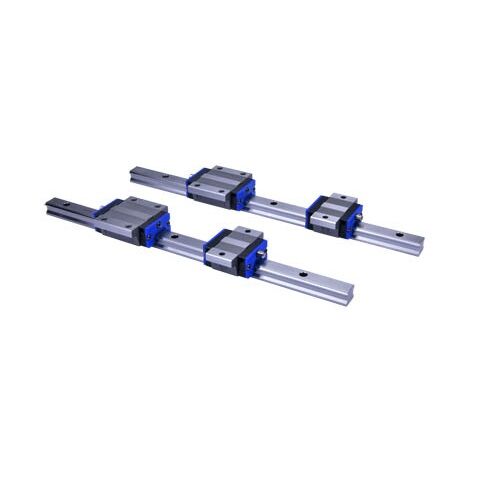

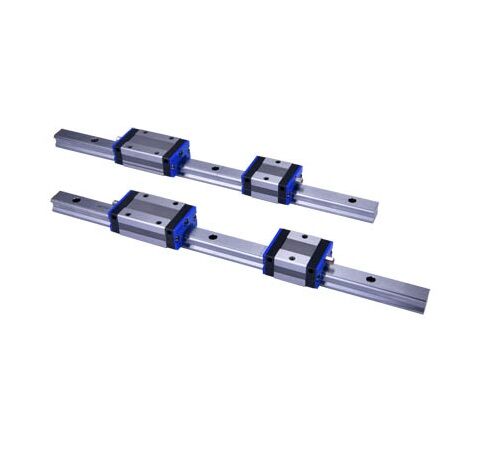

02_AirTAC LSD Series Low Profile Type Linear Guide

Product Features:

1.With self adjustment ability

X shaped (45°45°) of curved groove on cross section design makes it self aligning. Even small misalignment exists on the mounting surface this design can help absorb it and maintain high precision smooth and stable linear motion.



2. Low profile High rigidity equal load on four direction design

The 45degree contact angle design of the four rows of steel balls and the raceway allow the steel balls to achieve the ideal two point contact and can withstand the action and reaction force from the radial and lateral direction. Meanwhile preload can be applied to increase extra rigidity if necessary. Reduce the combined height of the slide block and the slide rail shorten the length of the slide block to achieve miniaturization.



3.Interchangeable

Because of the strict control on manufacturing process the dimensional accuracy is stable and within the set tolerance.

Besides the ball retainer design can prevent steel balls from falling out. There fore when assembling blocks are interchangeable within the same spec and still maintain consistency of preload and accuracy.

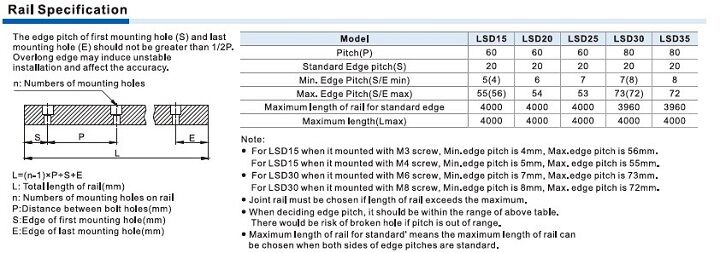

Specification:

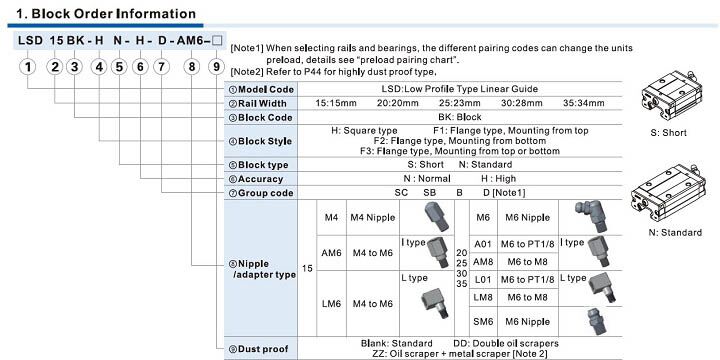

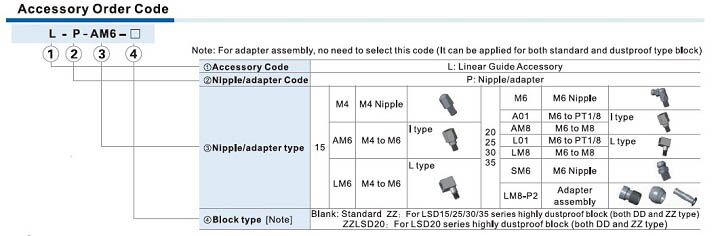

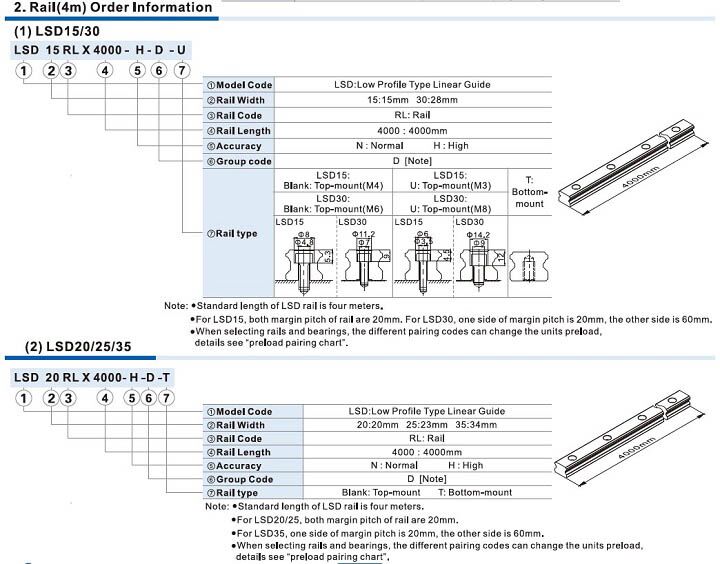

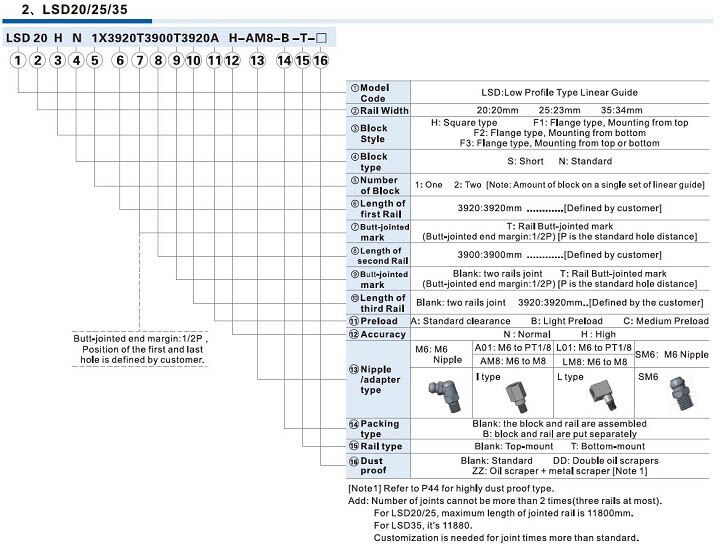

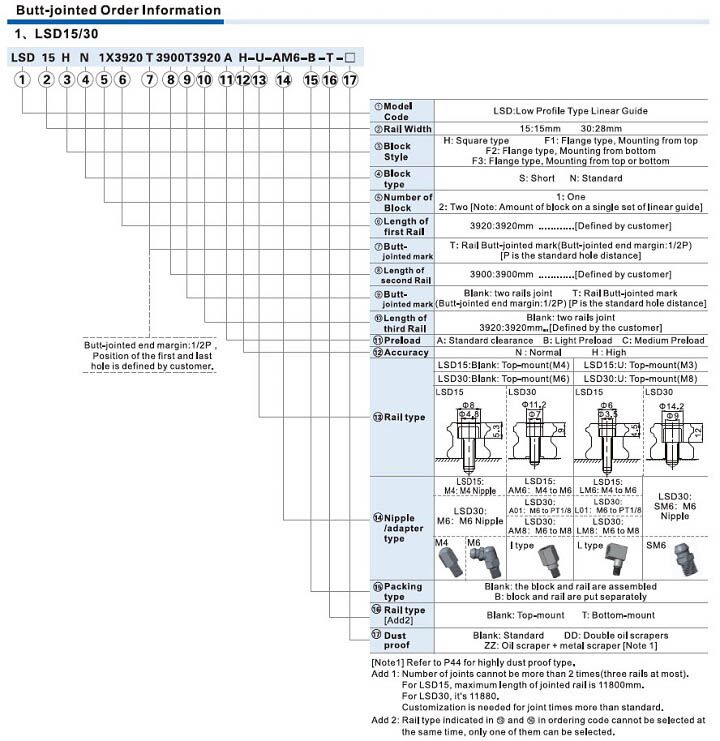

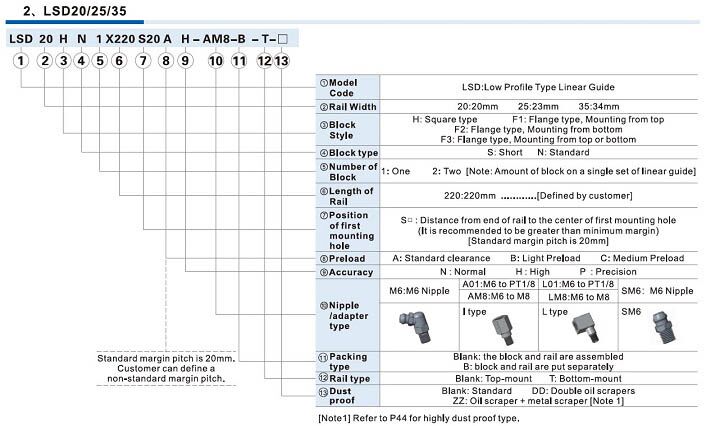

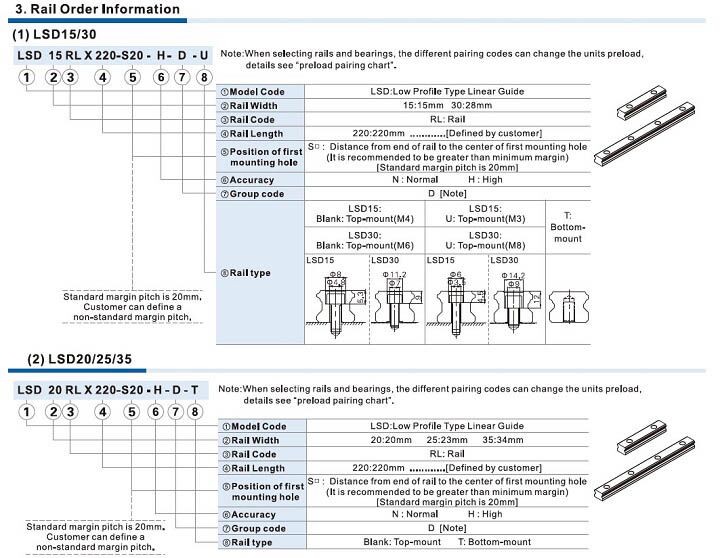

Ordering Code:





CLICK ABOVE FOR DOWNLOAD

LSD theoretical lifespan calculation program (beta)
