05_Airtac MF Series Cylinder

Product Feature:

1.JIS standard is implemented.

2.Piston adopts heterogeneous two way seal structure. It has compact size and has the function of oil reservation.

3.Front cover owns fixed anti-impact pad which can reduce the impact of direction-change of the cylinder.

4.There are several modes of back cover, which makes the installation of cylinder more convenient.

5. Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.

6.The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.

7.With the same bore size and stroke, cylinders of MF series are shorter than ISO6432 standard cylinders.

8.There are cylinders and mounting accessories with several specifications for your choice.

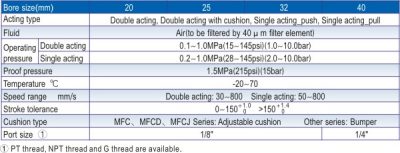

Specification:

Installation & Usage:

1.When load changes in the work, the cylinder with abundant output capacity shall be ed.

2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.

3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.

4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.

5.The medium used by cylinder shall be filtered to 40μm or below.

6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.

7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.

8.To avoid side load, otherwise, piston rod will be bent and deformed and damage the thread at the end of the rod. Single-acting type

can not be added in return.

9.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.

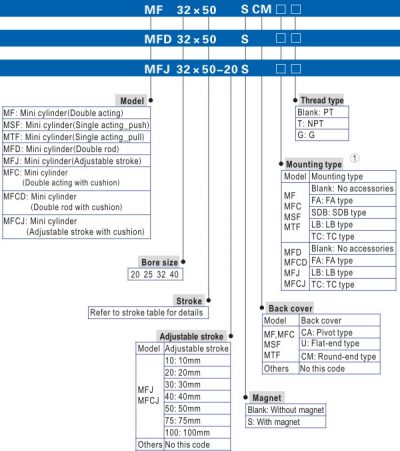

Ordering Code:

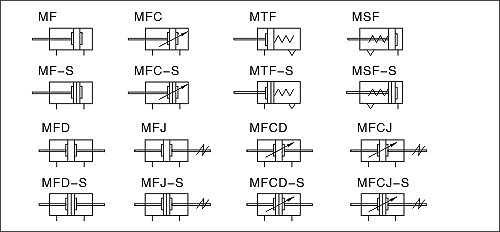

Symbol:
