Regulated Switching Power Supplies

• 1.8-multiple of current overload
• Compact Size, Light in Weight
• Use Switch to select input voltage 220VAC±10% or 110VAC±10%
• Over-current, Over-voltage, Low-voltage Protections
• Big Power with High Efficiency
• CE and RoHS

Introduction:

In stepper and servo systems, frequent speed and torque changes result in frequent current changes drawing from power supplies. When accelerating, servo / stepper drives draw high current and requires quick response for the power supplies. In de-acceleration, stepper / servo motors generates EMF charge back voltage back to servo / stepper drives, which will require the power supplies to “absorb” such voltage to the damage of connected stepper / servo drives.

Normal regulated switching power supplies commonly found on market are designed for powering devices with less output current changes. They can’t response quick enough to meet servo and stepper system. When adopted in servo or stepper systems, they could be even damaged because of lack the ability to handle voltage charge back from de-acceleration of servo / servo systems.

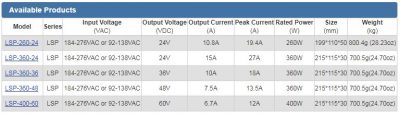

With special design, built-in EMI, and large built-in capacitors, Leadshine RPS regulated switching power supplies can meet the quick and frequent current change requirements in servo / stepper systems. Leadshine RPS series supplies are capable of delivering current efficiently and quickly to servo / servo drives without affecting the reliability. Those power supplies can working in a wide voltage range of 85 – 132 and / or 176 – 265 VAC, output 24 / 36 /48 / 60 VDC up to 500W continuous power.
