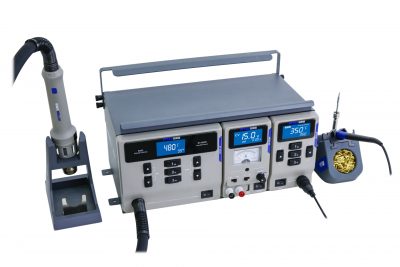

06_MS-500 3 in 1 Rework Station

Categories: , ,

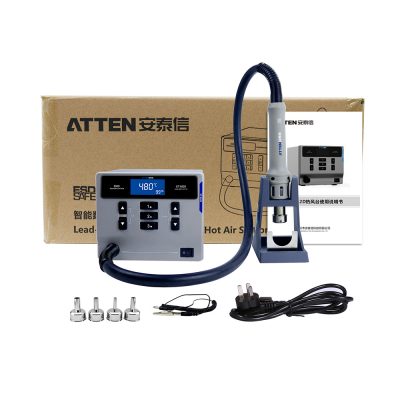

ST-862D

  • LCD display screen making control visualization.
  • Temperature unit switching function.
  • Temperature locking ,timed work function.
  • MCU controlled temperature calibration,compensation for constant working .
  • Strong air volume with brushless fan.
  • Easy to replace with pluggable heater.
  • Convertible with straight air and spiral air.
  • Auto-sleep function.

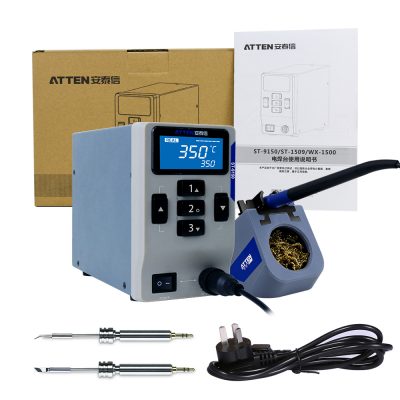

ST-9150

  • Design with LCD display screen making control visualization.
  • Buttons(1,2,3) for pre-setting or switching frequently used temperature.
  • Auto sleep ,auto standby ,auto shutdown function to keep soldering work
    safer and extend machine lifespan .
  • Has temperature locking, temperature calibration ,temperature alarming
    ,auto shutdown heating , password protecting function .
  • Temperature read out in ℃ and ℉ .
  • Compatible with various type of soldering tools .
  • Heating-up very fast with replaceable integrated heater

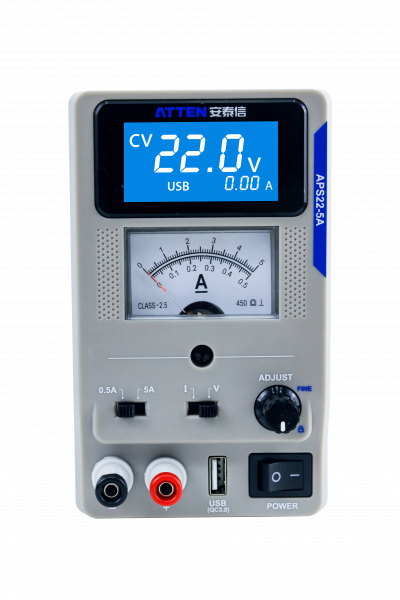

APS22-5A

  • Controlled by MCU digital and series adjustment, low ripple,
    low noise and high stability.
  • Designed with double types of tables, more suitable for
    telecommunication devices.
  • Fast dynamic load response speed, optimized proceed for
    communication equipments.
  • Support automatically recovered overcurrent protection(OCP)
    and overheating function(OHP).
  • Independent USB interface, which can provide current 3A
    output, support overcurrent and short circuit protection.

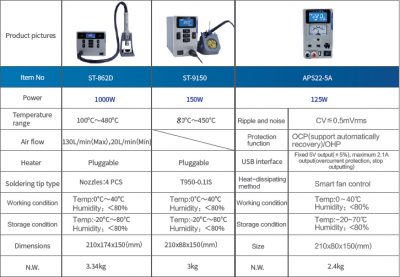

Technical specifications:
