Airtac 3A300 Series Valve

Product Feature:

1. Structure in sliding column mode: good tightness and sensitive reaction;
2. Double air control valves have memory function;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. No need to add oil for lubrication;
5. Malti-mounting helps to install and apply;
6. Integrate with the manifold to save installation space.

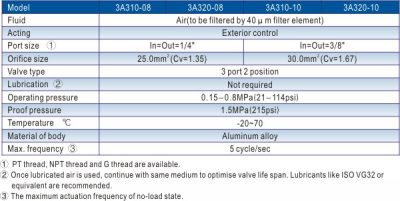

Specification:

Installation & Usage:

1. Before installing, be sure the valve hasn’t been damaged via transportation.

2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3. Please notice whether the installation condition accords with technical requirements (such as“act-uation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.

4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.

5. Take measure to avoid vibration and frozen.

6. Firstly press the base gasket into the base, and then connect the base with the valve body by the affiliated screws. The base gasket can be pressed into the installation places that are not used temporarily, and then seal them with affiliated blank cap. When the system expands, take the blank cap off and install relative air valves;

7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.

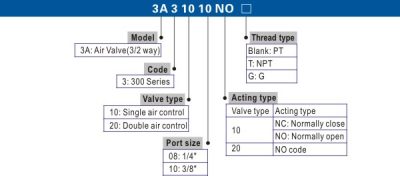

Ordering Code:
