21_Airtac GPR Series Precision Regulator

Product Feature:

1. High pressure regulating accuracy and rapid-response；

2. Good pressure and flow chart；

3. Easy installation, it can be installed independently by bracket or directly with existing filter combination components of module type；

4. In addition to high pressure type, the type of medium pressure and lower pressure can be ed.

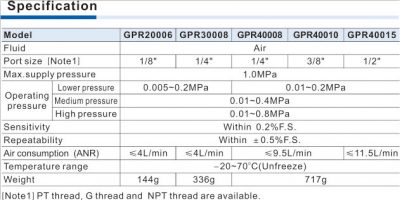

Specification:

Installation & Usage:

1.Check whether the components have been damaged during transportation before installing and using.

2.Pay attention to whether the flow direction of air (notice “→” direction) and thread type are correct.

3.Please notice whether installation condition accords with technical requirements (such as “working  pressure” and “applied temperature range”);

4.Avoid usage in an environment that exposes the filter and lubricator bowl through contact with Chlorine, solvent, aromatic essence, acid and alkali to avoid damage to the Filter and Lubricator bowl.

5.Regularly clean or change filter core. Lubricators and regulators shall be in descending order.

6.Keep the dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored

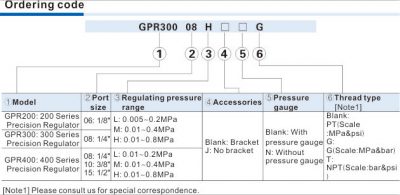

Ordering Code:






CLICK ABOVE FOR DOWNLOAD
