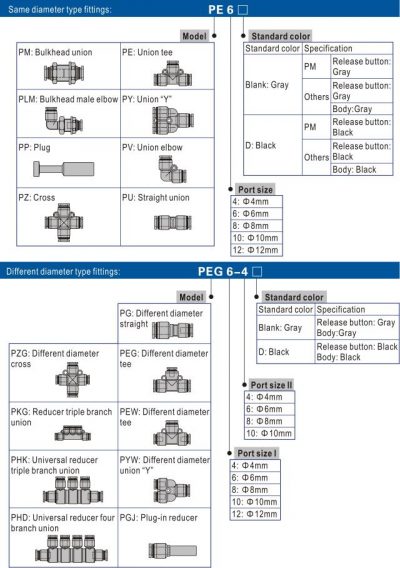

One-touch fittings—tube-tube type
1. Variable models can be widely used in every kind of pneumatic systems.
2. High circulation performance: bear the same flow with the volume of the tubing inside diameter.
3. Connect tubing easily and conveniently. The tubing connection portion is safe and durable.
4. The threaded portion is covered with sealant and the M5 thread is attached with a sealing gasket to prevent air leakage over the connection thread portion.
5.The nickel plated body is anti-corrosion and anti-pollution, which allows a broader application.
|Operating pressure range||0~9kgf/cm2(0~0.9MPa)|
|Ambient and fluid temperature (℃)||0~60|
|Applicable tubing||Soft nylon or polyurethane|
