Product Feature:
PHV series
1. When the three-way valve is closed, the outlet pressure is released, which facilitates in commissioning and maintenance.
2. The finger valve has excellent flow characteristic and high sensitive unti-direction characteristic.
Specification:
| Operating pressure range | 0~9kgf/cm2(0~0.9MPa) |
| Negative pressure | -750mmHg(10Torr) |
| Proof pressure | 1.5MPa |
| Ambient and fluid temperature (℃) | 0~60 |
| Applicable tubing | Soft nylon or polyurethane |
| Color | Grey/black |
Installation & Usage:

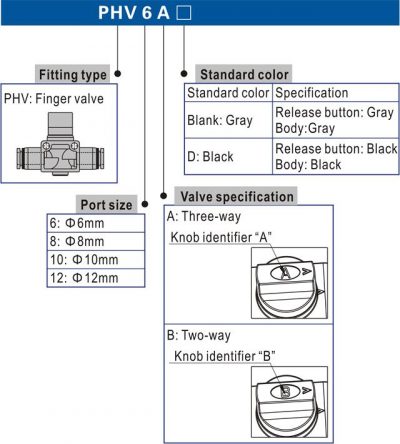

Ordering Code:
