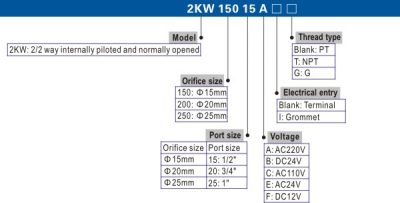

- 2/2 way internally piloted and normally opened type solenoid valve can quickly change the direction and has large volume.
- It has tight structure, small size and light weight. It is easy to be installed and dismounted.

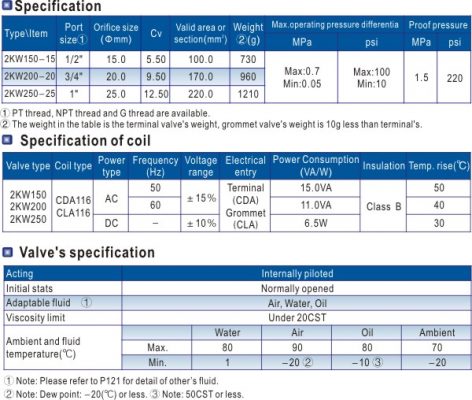

- The valve body is made of brass. The temperature classification of coil is B. The standard’s material is FPM-F, please contact us if other material needed.
- The levels of protection of the coil are IP65 and the electrical entry includes grommet and terminal.
Installation & Usage:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. The coil must be pure vertical, the inlet and outlet on body must be horizontal. it’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”,“actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Take measure to avoid vibration and frozen.
5. Before using the fittings and tubes make sure they are clean. When connecting tofittings, be sure the PTFE Thread Seal Tape is used correctly.
6. To keep the dust away, Default paragraph font;Never forget to install dirt-proof boot in air intake and outlet during dismounting.
