Product Feature:
1.Belong to SAI series standard cylinder add lock structure.
2.Can be locked at random positions in stroke scope.
3.Reasonable lock structure, the lock state no relation with the direction of piston moving.

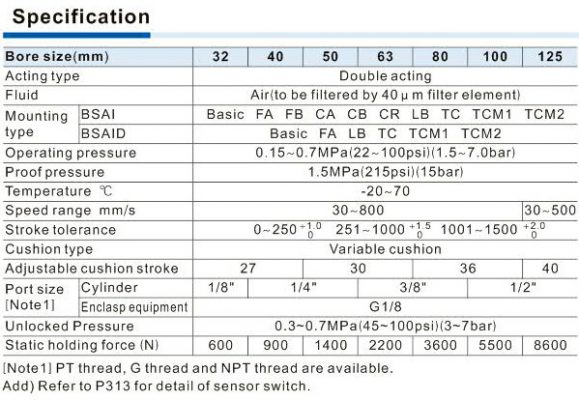

Specification:
Installation & Usage:

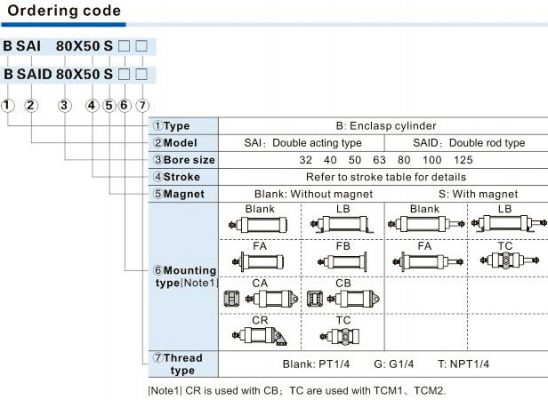

Ordering Code:
Symbol:
Product Feature: Specification: Ordering Code: Symbol:
Product Feature: 1. ISO15552 (original ISO6431) standard cylinder. 2.The piston seal is composed of two Y-shape seals of single-direction structure, which has compensation function, long service life and low start-up pressure. 3.SGC series cylinders are made of aluminum pipe. 4.The buffer adjustment of cylinder is smooth and steady. 5.Cylinders and accessories for installation with several [...]
Product Feature: 1. ISO15552 and VDMA24562 standard cylinder; 2. The piston seal is composed of two Y-shape one-way seal structure, which has compensation function, long service life and low start-up pressure; 3. The square aluminum pipe without tie rod has good corrosion resistance; 4. The buffer adjustment of cylinder is smooth and steady; 5. Cylinders [...]
Product Feature: 1.Standard cylinder manufactured by our enterprise. 2.The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of grease reservation. 3.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability. 4.Compared with ISO15552 standard cylinder, SC [...]
Product Feature: 1.JIS standard cylinder. 2.The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of greasel reservation. 3.The Mickey Mouse-shaped aluminum barrel of JSI series has no tie rod and good performance of corrosion resistance. 4.Compared with ISO15552 standard cylinder, the cylinder of JSI series [...]
