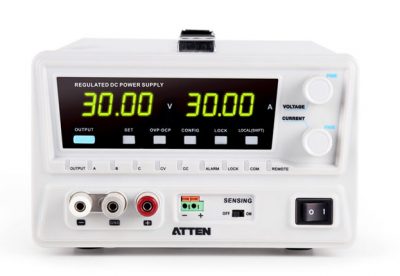

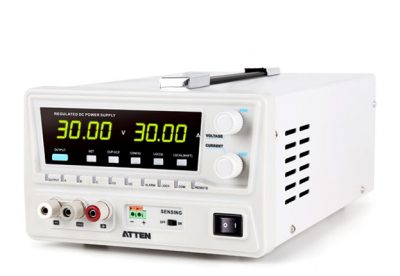

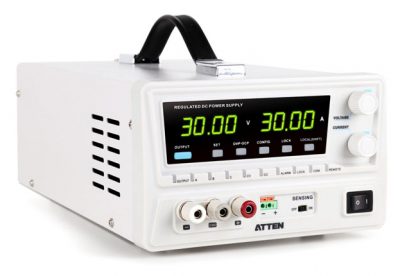

Product Descriptions :
- Use 100-240VAC common AC Input ,which can make any AC network voltage from all over the world to adjust automatically .
- Over voltage, over current, over power, over heating protection functions.
- Low ripple, large current and high cost effective.
- Smart Fan cooling system with low noise.
- Conducting remote control through USB or RS232.
Technical Specifications :
| Specifications： | CP600-30V/30A | CP900-30V/30A |
|---|---|---|
| Volatge： | 100-265V AC | 100-265V AC |
| Input frequency： | 47-63Hz | 47-63Hz |
| PFC： | >0.98 | >0.98 |
| Output power： | 0-600W (constant power) | 0-900W |
| Output voltage： | 0-31V | 0-31V |
| Output current： | 0-31A | 0-31A |
| Working method： | CV/CC/CP | CV/CC |
| Voltage： | ||
| Voltage setting resolution： | 1mV | 1mV |
| Maximum preset voltage： | 31V | 31V |
| Setting accuracy： | 0.05{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50}set + 20mV | 0.05{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50}set + 20mV |
| Transient response： | 100uS | 100uS |
| Line regulation： | 0.01{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} +5mV | 0.01{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} +5mV |
| Load regulation： | 0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} + 5mV | 0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} + 5mV |
| Voltage display resolution： | 10mV | 10mV |
| Voltage display accuracy： | ±(0.05％ of reading＋2digits) at 23±5℃ | ±(0.05％ of reading＋2digits) at 23±5℃ |
| Ripple noise（rms）： | 100mVp-p/10mVrms | 100mVp-p/10mVrms |
| Rise time (Rated Load)： | 150mS | 150mS |
| Fall time (No Load)： | 150mS | 150mS |
| Temperature coefficient： | 100ppm/℃(TYP Value) | 100ppm/℃(TYP Value) |
| Current： | ||
| Setting resolution： | 1mA | 1mA |
| Maximum preset current： | 31A | 31A |
| Setting accuracy： | 0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} set +0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} rating | 0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} set +0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} rating |
| Line regulation： | 0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50}+10mA | 0.1{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50}+10mA |
| Load regulation： | 0.2{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50}+10mA | 0.2{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50}+10mA |
| Ripple noise： | 50mA | 50mA |
| Temperature coefficient： | 200ppm/℃ | 200ppm/℃ |
| Current display resolution： | 1mA(≤10A) / 10mA(≥10A) | 1mA(≤10A) / 10mA(≥10A) |
| Current display accuracy： | ±(0.2％ of reading＋30 digits) at 23±5℃ | ±(0.2％ of reading＋30 digits) at 23±5℃ |
| Protection functions： OVP range:0.3V—Rated Voltage +1.5VOCP range:0.3A—Rated Voltage +1.5A |
OVP、OCP、OHP、OPP、SCP(short circuit protection) | OVP、OCP、OHP、OPP、SCP(short circuit protection) |
| Efficiency(full load)： | ≥85{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} | ≥85{9a7b30434222e1c8bb37c89df41d0f3b40855e2238a80be0bf7298efc3fb7f50} |
| Communication method： | USB、RS232 | USB、RS232 |
