EL6 Series – AC Servo Drives

Categories: , ,

Highlights:

  • Single phase 220VAC input
  • Power range from 400W to 1000W
  • Pulse&dir/ RS485/ CANopen communication
  • Position/ velocity/ torque control
  • Easy tuning, flexible to control
  • Automatic identification for motor type
  • 17-Bit/ 23-Bit absolute encoder

Introduction:

EL6 Series AC servo products are cost-effective AC digital servo which is designed for position high accurate control, power range up to 1kW, which can provide a perfect solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi – mode filter function etc, and with encoder resolution 17bit or 23bit, it can provide machines a intelligent performance.

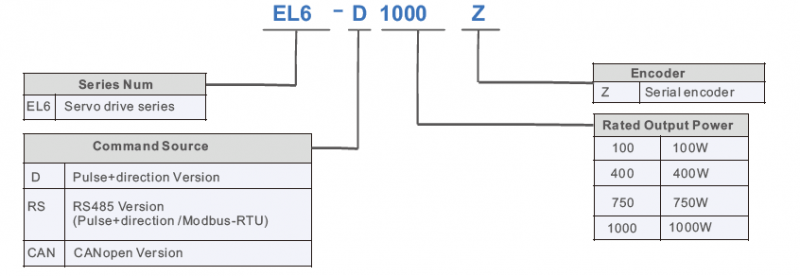

Part Numbers:
