ELDM Series – Brushless Servo Motors

Categories: , ,

Highlights:

  • Brushless construction
  • Reliable industrial quality
  • High torque density
  • Resolution of the integrated encoders optional
  • Metric 60 mm frame sizes
  • Rated power from 50 W to 750 W
  • Standard cabling options for direct connection to the ELD2 series drives

Introduction:

The ELDM series low-medium voltage AC servo motors offer high performance with models ranging from 50W to 750W. Standard  models come  with  a  standard  2500-line  or  1000-line  differential  encoder with index slits  (A, B, Z), and Hall Sensors (U, V, W). When driven by Leadshine ELD2 series servo drives, the ELDM series motors meet application requirements from as low as 1 rpm to as high as 4000 rpm.

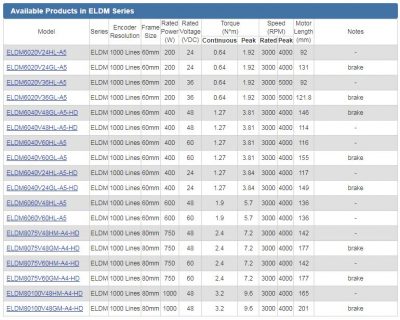

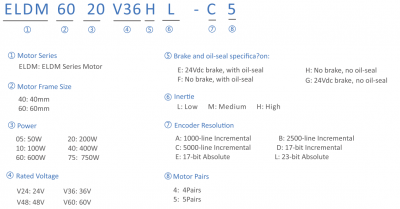

Part Numbers:
