ELP Series – Advanced AC Servo Drives

Categories: , ,

Highlights:

  • Easy tuning, flexible to control
  • Automatic identification for motor type
  • RS485/Modbus/EtherCAT
  • Notch filter, Damping filter
  • Dynamic brake
  • 17-Bit/23-Bit absolute encoder
  • Internal resistor

Introduction:

ELP series AC servo products are high performance AC digital servo which is designed for position/velocity/torque high accurate control,power range up to 2kW and it can provide intelligent performance with easy tuning process.

Combined with abundant features like MFC,vibration suppression,Multi-mode filter function,etc.It provides machines a compact size,low tuning works.With high resolution up to 23-Bit,which can be used for high accuracy applications.

The ELP offers control types of options of step & direction, Modbus/RS485, EtherCAT, and PR (position table) built-in indexers

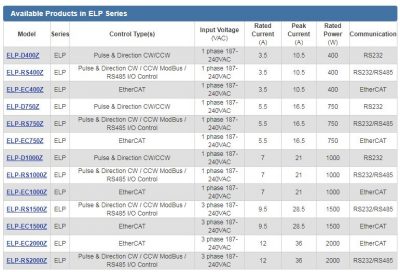

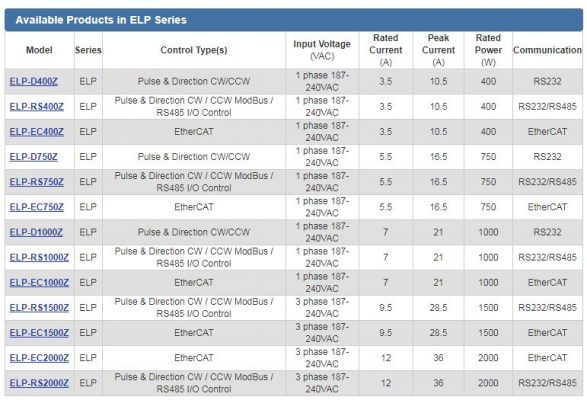

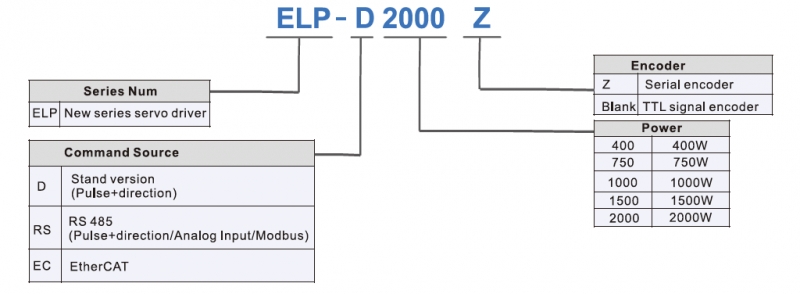

Part Numbers:
