Product Feature:
1.Quick and reliable mounting clamps makes it convenient to install and use.
2.The performance of pressure adjustment is reliable with high precision.
3.The efficiency of eliminating moisture and solid grain is high.
4.Two drain types are available: manual drain+semi-auto drain and automatic drain.
5.Three bowl materials are available: PC, Metal and Nylon.

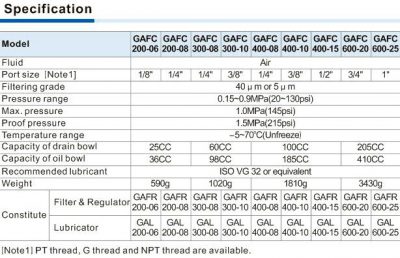

Specification:

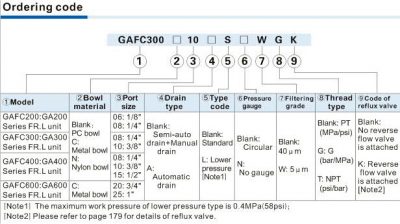

Ordering Code:
Product Feature: 1.Oil dripping adopts gap seal structure, which makes the adjustment of oil supply more reliable. 2.Oil feed ring can only make one full turn. The quantity of oil supply, basically taking on linear distribution. The quantity of oil supply can be generally calculated according to the position of graduation ring. 3.Filling of oil [...]
Product Feature: 1.Circular square pressure gauge which with clip and magnifier is used to save installation space. 2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere. 3.Balanced design is adopted for the pressure adjustment mechanism. 4.Unique diversion structure spins the air flowing through to effectively separate the [...]
Product Feature: 1.Unique diversion structure spins the air flowing through to effectively separate the liquid from the air and reliably filter the solid grain. 2.It has low pressure loss, high efficiency in separating water and large drain bowl capacity. 3.Filtering grade includes 5μm and 40μm (Optional). 4.Three drain types are available: manual drain, semi-auto drain [...]
Product Feature: 1.Circular square pressure gauge which with clip and magnifier is used to save installation space. 2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere. 3.Balanced design is adopted for the pressure adjustment mechanism. 4.In addition to panel installation, the bracket is optional for installation. Specification: [...]
Product Feature: 1.The structure of oil dripping adopts gap seal type, which makes the adjustment of oil supply more reliable. 2.Oil feed ring can only make one full turn. The quantity of oil supply basically takes on linear distribution. The quantity of oil supply can be generally calculated according to the position of graduation ring. [...]
