12_Airtac GF Series

Product Feature:

1.Unique diversion structure spins the air flowing through to effectively separate the liquid from the air and reliably filter the solid grain.

2.It has low pressure loss, high efficiency in separating water and large drain bowl capacity.

3.Filtering grade includes 5μm and 40μm (Optional).

4.Three drain types are available: manual drain, semi-auto drain and automatic drain.

5.The bracket can be ed for installation.

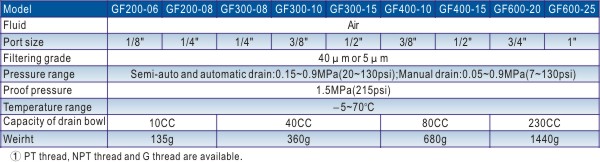

Specification:

Installation & Usage:

1.Check whether the components have been damaged during transportation before installing and using.

2.Pay attention to whether the flow direction of air (notice “→” direction) and thread type are correct.

3.Please notice whether installation condition accords with technical requirements (such as “working  pressure” and “applied temperature range”);

4.Avoid usage in an environment that exposes the filter and lubricator bowl through contact with Chlorine, solvent, aromatic essence, acid and alkali to avoid damage to the Filter and Lubricator bowl.

5.Regularly clean or change filter core. Lubricators and regulators shall be in descending order.

6.Keep the dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.

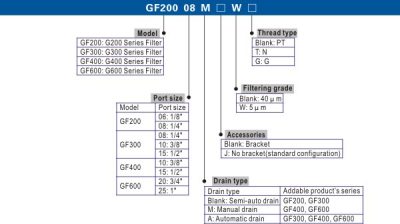

Ordering Code:
