13_Airtac GFC Series

Product Feature:

1.Quick and reliable mounting clamps makes it convenient to install and use.

2.The performance of pressure adjustment is reliable with high precision.

3.The efficiency of eliminating moisture and solid grain is high.

4.Three drain types are available: manual drain, semi-auto drain and automatic drain.

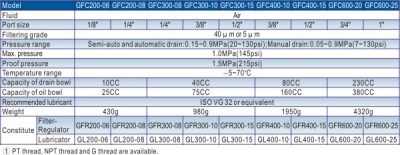

Specification:

Installation & Usage:

1.Check whether the components have been damaged during transportation before installing and using.

2.Pay attention to whether the flow direction of air (notice “→” direction) and thread type are correct.

3.Please notice whether installation condition accords with technical requirements (such as “working  pressure” and “applied temperature range”);

4.Avoid usage in an environment that exposes the filter and lubricator bowl through contact with Chlorine, solvent, aromatic essence, acid and alkali to avoid damage to the Filter and Lubricator bowl.

5.Regularly clean or change filter core. Lubricators and regulators shall be in descending order.

6.Keep the dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.

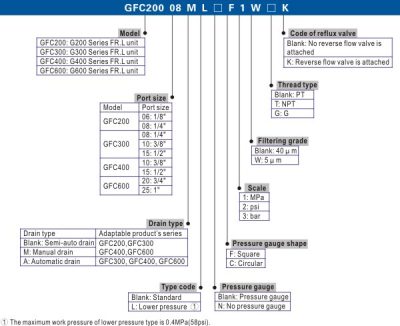

Ordering Code:
