Airtac One-touch fittings—threaded type

Product Feature:

One-touch fittings—threaded type

1. Variable models can be widely used in every kind of pneumatic systems.

2. High circulation performance bear the same flow with the volume of the tube innerdiamater.

3. The nickel plated body is anti-corrosion and anti-pollution,which allows a broader application.

4. Metal fittings can be used in high temperature environment.

Specification:

Operating pressure range	0~9kgf/cm2(0~0.9MPa)
Negative pressure	-750mmHg(10Torr)
Proof pressure	3MPa
Ambient and fluid temperature (℃)	0~150

Installation & Usage:

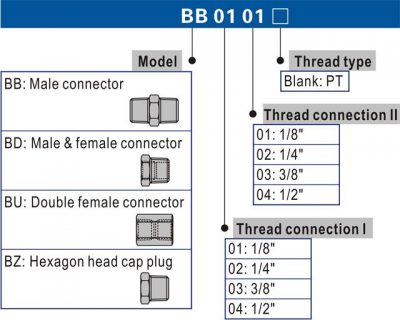

Ordering Code:
