ACM Series – 60mm Brushless Servo Motors

Categories: , ,

Highlights:

  • Brushless construction
  • Reliable industrial quality
  • High torque density
  • Resolution of the integrated encoders optional
  • Metric 60 mm frame sizes
  • Rated power from 100 W to 400 W
  • Standard cabling options for direct connection to the ACS series drives

Introduction:

The ACM series low-medium voltage AC servo motors offer high performance with models ranging from 100W to 400W. Standard  models come  with  a  standard  2500-line  or  1000-line  differential  encoder with index slits  (A, B, Z), and Hall Sensors (U, V, W). When driven by Leadshine ACS series servo drives, the ACM series motors meet application requirements from as low as 1 rpm to as high as 3500 rpm.

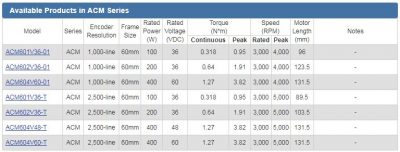

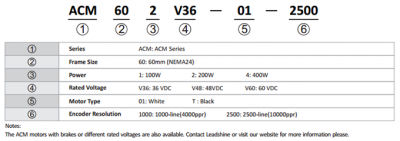

Part Numbers:



a

CLICK ABOVE FOR DOWNLOAD
