Specification:
Installation & Usage:

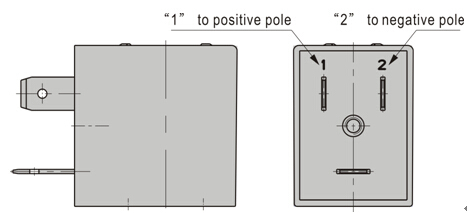

Coil terminal with DC specification has polar indicator lights, thus when wiring, notice positive and negative poles, “1” shall be connected to positive pole, “2” to negative pole. If the poles are connected inversely, the indicator lights will not shine but valve still actuates.

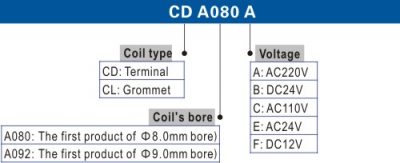

Ordering Code:
Product Feature: 1. Direct acting and normally opened type 2/2 way solenoid valve. Its high sensibility allows it to change direction quickly; 2. It has wide pressure range, including extra high pressure (X), high pressure (H), standard and large volume(L) to choose from; 3. It is compact, small size and light weight. It is easy [...]
Product Feature: 2/2 way internally piloted and normally opened type solenoid valve can quickly change the direction and has large volume. It has tight structure, small size and light weight. It is easy to be installed and dismounted. The valve body is made of brass. The temperature classification of coil is B. The standard’s material [...]
Product Feature: 1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensibilily allows it to change direction quickly; 2. It has wide pressure range, including extra high pressure (X), high pressure (H), standard , large volume(L) and extra large volume (T) to choose from; 3. It is compact, small size and [...]
Product Feature: 1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensibility allows it to change direction quickly; 2. It has wide pressure range, including extra high pressure (X), high pressure (H), standard , large volume(L) and extra large volume (T) to choose from; 3. It is compact, small size and [...]
Product Feature: 1. Indirect acting(Internal pilot) and normally closed type 2/2 way solenoid valve. Its can change direction quickly and has large flow. 2. It is compact, small and light weight. It is easy to install and dismantle; 3. The valve body is made of brass . The coil has a Heat resistance classification of [...]
