16_Airtac GR Series

Product Feature:

1.Embedded square pressure gauge is used to save installation space. (External circular pressure gauge is also optional).

2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3.Balanced design is adopted for the pressure adjustment mechanism.

4.In addition to panel installation, the bracket is optional for installation.

5.In addition to standard type, lower pressure type is optional (the highest adjustable pressure is 0.4MPa).

Specification:

Installation & Usage:

1.Check whether the components have been damaged during transportation before installing and using.

2.Pay attention to whether the flow direction of air (notice “→” direction) and thread type are correct.

3.Please notice whether installation condition accords with technical requirements (such as “working  pressure” and “applied temperature range”);

4.Avoid usage in an environment that exposes the filter and lubricator bowl through contact with Chlorine, solvent, aromatic essence, acid and alkali to avoid damage to the Filter and Lubricator bowl.

5.Regularly clean or change filter core. Lubricators and regulators shall be in descending order.

6.Keep the dust away. The dust cover shall be installed in intake and outlet when the device is dismantled and stored.

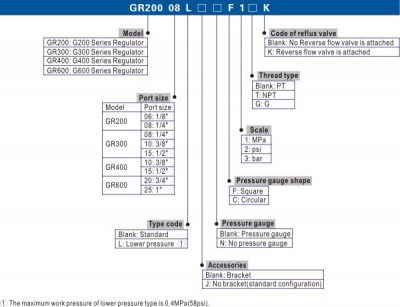

Ordering Code:
