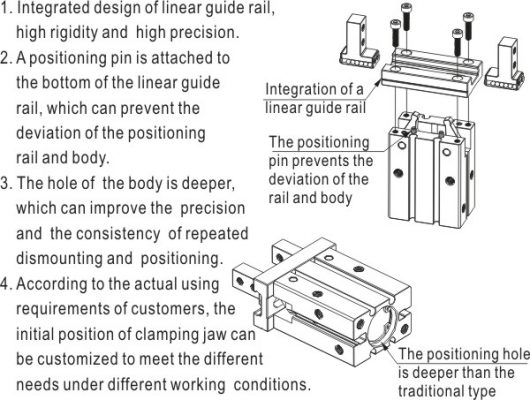

Product Feature:

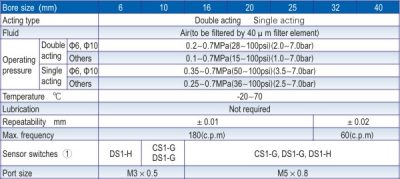

Specification:

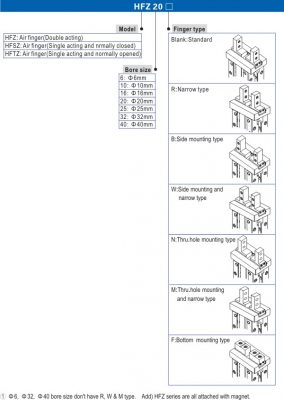

Ordering Code:

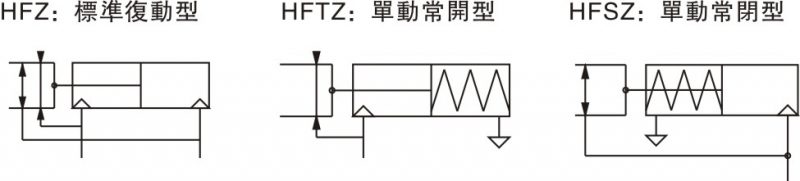

Symbol:
05_Airtac HFZ Series
Be the first to review “05_Airtac HFZ Series”
Related Products
Product Feature: 1.A structure of lever type gripping is designed to reduce the cost under the premise of accuracy. 2.A sheet metal is installed between the finger and body to reduce abrasion and extend the service life. 3.The contact area between finger and body is enlarged to reduce shaking and enhance the gripping accuracy. 4.The [...]
Product Feature: 1.Using a single piston structure, large gripping torque. 2.Integrated with variable flow valve, it is easy and convenient to adjust the speed of opening and closing of gripping jaw. 3.Reasonable gripping angle, wide range of actual use. 4.Precise positioning accuracy, it is more accurate and reliable when gripping work-piece. 5.Various types of installation, [...]
Product Feature: 1.open/close type, simplify the gripping action. 2.A sheet metal is installed between the finger and body to reduce abrasion and extend the service life. 3.Dust proof is designed in the finger part, which is applicable to special working environment. 4.All series are all attached with magnet. 5.Many mounting types to be choosed. Specification: [...]
Product Feature: 1. Cuniform block is adopted in the interior of the air gripper to afford larger gripper force. 2. The bumper is adopted in the front of piston, which can reduce the noise of metal bump. 3. A positioning hole is attached to the bottom of the body, which can improve the precision and [...]
Product Feature: 1. Design for large workpiece. 2. Double pistons design to increase the clamping force. 3. Magnet is included in the standard configuration. 4. The gripper opening or closing can be precisely synchronized with the rack & pinion mechanism. Specification: Installation & Usage: http://www.airtac.net/en/uploads/2018013142753693.pdf Ordering Code: Symbol:
