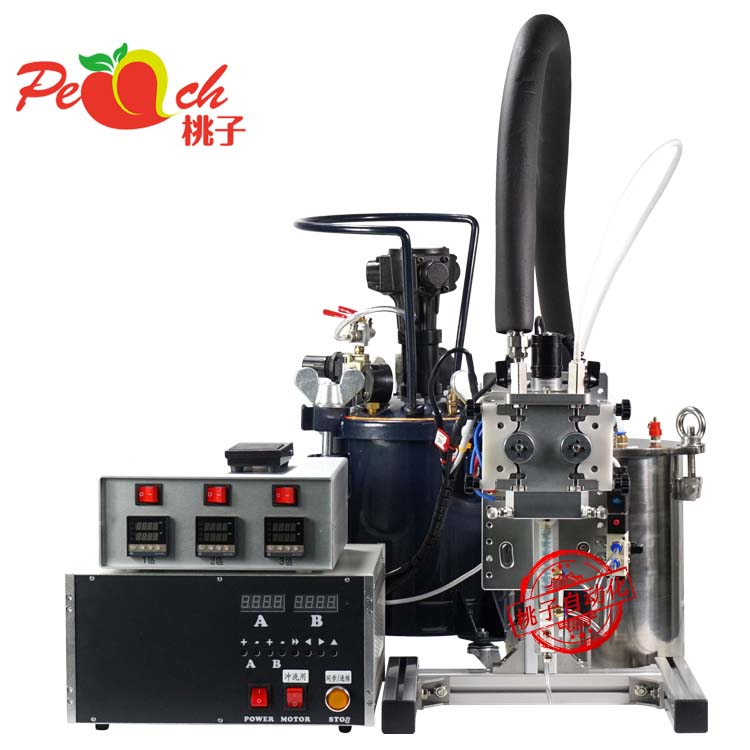

TZ-330 (double liquid peristaltic pump)

TZ-330 (double liquid peristaltic pump)

– The TZ-330 is designed to control the AB pump wheel speed by a double stepping motor, and the ratio is accurate and the glue is stable. How much to use, to save unnecessary waste, no AB glue with more heating problems. Use standard square static mixing hose, fully mix without bubbles, no need to wash.

– In addition to the two-liquid dispensing system, the TZ-330 also contains a 500ml dispensing syringe device.

– Taiwan micro-metering pump head, stable flow, to ensure accurate ratio.

– Soft pump tube with 4, 8, and 16 rotor pump wheels (replaceable), no general gear pump easy to wear and leak.

– The military-grade pump is stable and wear-resistant. It is suitable for all transparent or black, white and various color powder fillers.

– 16 rotor with micro pump tube, suitable for 0.1~0.01g ultra-micro AB glue automatic dispensing.

– 4 rotor with reinforced pump tube, suitable for 1~4 grams per second

– Suitable for AB two-liquid or single-liquid epoxy resin, silica gel, PU glue with medium to low viscosity (<20,000cps) weight ratio of 20:1 ~ 1:1.

– Microcomputer precision control independent A, B glue speed 0.0~120.0 rev / min.

– Glue / suckback set time independent control 0.0~120.0 seconds

– The set value is automatically stored and is not afraid of power failure.

– Special mixing hose collet design, easy to install, no need to clean every day.

Standard equipment:

• Dispensing electronic control machine (A, B pump wheel speed control, glue / suckback time control, manual control)
• Two-component electric dispensing valve (1600 micro-stepping motor, A+B independent control, 4, 8, 16 rotor pump wheel)
• Static mixing hose clamp (easy to disassemble, no cleaning)
• Durable electric pedal (cable length 2 meters)
• Parts box / consumables (24-section mixing tube, 6mm pump tube, PE tube, straight-through fitting, screw, sealing ring)
• Operation and Maintenance Manual (detailed manual)
