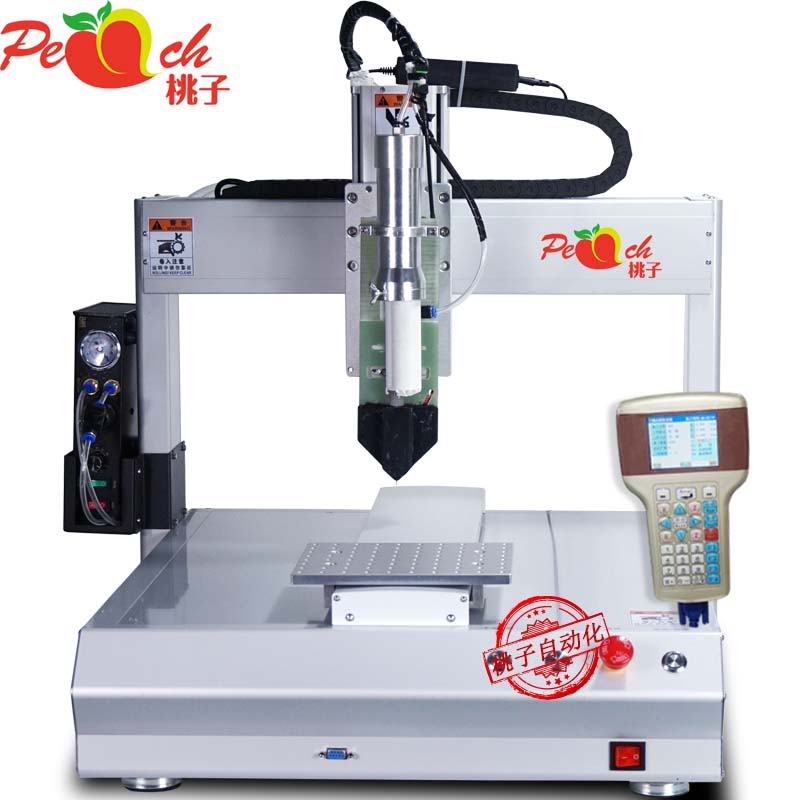

TZ-ABZ331 three – axis AB glue automatic dispensing machine
First, our superior equipment and process services
First, with a refrigeration device, the minimum can reach 3 degrees, effectively delaying the mixing and curing time of AB glue;
Second, compatible with 10:1, 1:1, 2:1AB glue mixed dispensing;
Third, aluminum profile molding structure, solid, beautiful, temperature, high precision;
Fourth, single-chip control + handheld box programming, simple and practical, full-featured, efficient use;
- Japan’s Shinano Motor, Taiwan’s silver rail, Germany’s Omron Optoelectronics, Japan’s three stars
Belt, research control drive, flood switch, high configuration parts, durable;
Sixth, we provide free sample service, first proofing to see the effect, and then rest assured to buy goods;
Seven, we provide one year free warranty service, use with peace of mind;
Eight, we provide free technical training, process guidance, production import support.
model | TZ-ABZ331 three – axis AB glue automatic dispensing machine |
Dispensing range X/Y/Z (mm) | 300/300/100 |
Programming mode | Teaching programming or graphic import |
Motionable graphics track | Points, lines, arcs, full circles, curves, polylines, spirals, ellipses |
Dispensing head | Y -needle dispensing mechanism |
Dispensing bucket | 50mlAB plastic flashlight |
Minimum discharge | 0.01ml |
Glue frequency | 5 times / sec |
Maximum load | 10kg |
Movement speed (mm/sec) | 0–500 |
Repeatability | ± 0.02 mm |
control method | MCU + handheld box |
Number of program records | 100 groups |
Display method | LCD teach pendant |
Motor system | Japan Shinano Motor |
driver | Research control |
guide | Taiwan silver |
Photoelectric switch | Omron |
transfer method | Timing belt |
Input power | Full voltage AC110V ~ 220V |
External control interface | RS232 |
Dimensions | 540*580*650 |
Body weight (kg) | 58 KG |
