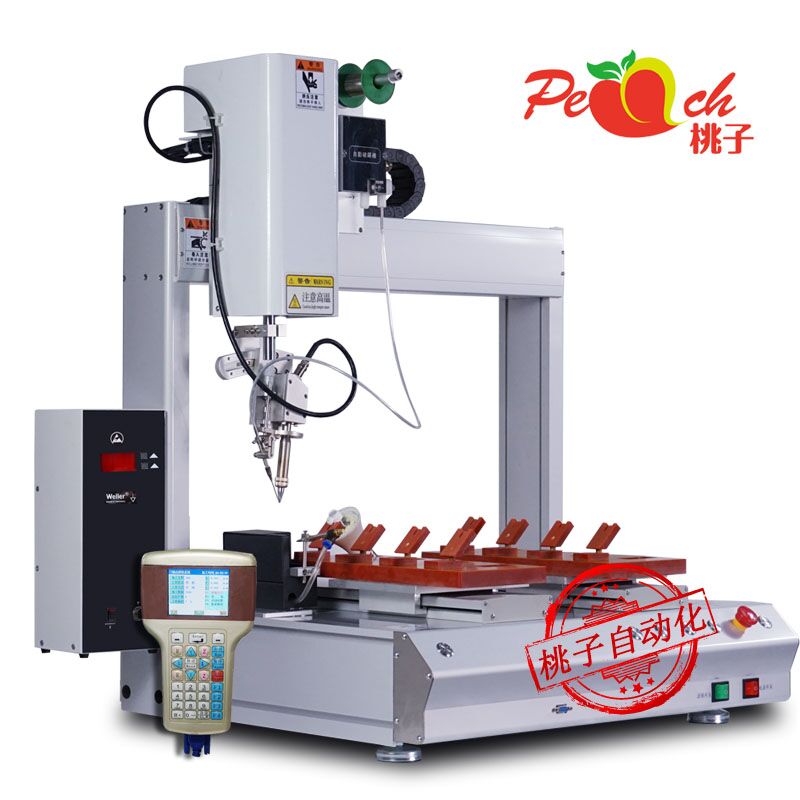

TZ-HX5331R double platform rotary automatic soldering machine
Platform type automatic soldering machine, widely used in electronic circuit boards, LED aluminum substrates, plug-in electronic components, wire soldering process! Applicable to all kinds of products, replacement of fixtures, replacement of the tip can be switched.
Fast soldering saves labor!
Program settings, solder effect is good!
The machine is in position and the solder consistency is strong!
First, our product advantages
1, can be rotated 360 degrees, no angle welding different points;
2, the double platform alternately runs, while welding the product, while picking and placing the product, saving the time of picking and placing the product;
3, simple programming, you can directly input the coordinates of the solder joints, teach the reproduction of the coordinates of the solder joints, simply operate the teaching box, you can guide the end of the motion to the solder joint position
4, multi-axis linkage manipulator, all using precision stepper motor drive and advanced motion control algorithm, effectively improve the positioning accuracy and repeatability of the end of the movement (tip).
5 , flexible and diverse soldering method, while supporting spot welding and drag welding, all process parameters can be set by the user to adapt to various difficult operations and micro soldering process
6, single and double Y-axis can be selected, single and double soldering head can be selected, the production efficiency is higher, the speed is faster, the pre-process puts the product, the post-process takes the product, and truly unattended operation.
7, using imported WELLER temperature control, can be welded at a lower temperature, so that your product will not be damaged due to too high temperature.
- The stable WELLER system can keep the temperature set by the soldering iron head stable. It does not need to wait for the soldering iron head to return to temperature because the heat is sucked away by the part or the PC board. It will not be caused by this phenomenon during the automation operation. Poor welding quality
9 , rapid heating and rapid cooling, room temperature to the set temperature of 300 ° C only 10 seconds, within 0.1 seconds to return to temperature (temperature difference of 10 degrees), temperature error is ± 1 ° C. 10. High-strength soldering iron tip multi-layer coating is resistant to high temperature oxidation. 11. With hundreds of soldering irons, you can design a variety of soldering iron tips for your customers’ needs. 12, ± 0.02mm accuracy, to ensure the accuracy of the welding position during the production process.
|Model||TZ-HX5331R double platform rotary automatic soldering machine|
|Temperature Control System||WELLER|
|Temperature range||0-500 °C|
|Temperature error||±2 °C|
|Dispensing range X/Y/Z (mm)||500/300/300/100/360 °|
|Movement speed (mm/sec)||0–500|
|Decomposition ability||0.01 mm/Axis|
|Repeatability||± 0.02 mm / Axis|
|Program recording mode||100 groups|
|Display method||LCD teach pendant|
|Motor system||Japanese micro stepping precision motor|
|Belt||Japan’s three stars|
|Motion tween function||3 axis|
|Input power||Full voltage AC110V ~ 220V|
|External control interface||RS232|
|Body weight (kg)||69 KG|
