06_Airtac HFK Series
Awaiting product image

06_Airtac HFK Series

Categories: , , , Tags: ,

Product Feature:

1、Six kinds of bore size , three kinds of type and Seven kinds of finger type.

2、Integrated design of linear guide roller,  high rigidity and  high precision.

3、A positioning pin is attached to the bottom of the linear guide rail, which can prevent the deviation of the positioning rail and body.

4、The squareness magnetic switch slots convenient to install DS1-G\CS1-G type inducting switch.

The roundness magnetic switch slots convenient to install DS1-H type inducting switch.

Can be mounted from three directions：With mounting holes on the side and tail.

5、With positioning hole：The positioning hole can improve the precision and the consistency of

repeated dismounting and positioning.

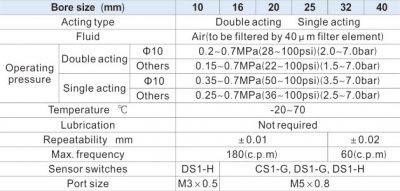

Specification:


Installation & Usage:

https://global.airtac.com/uploads/2018013147779093.pdf

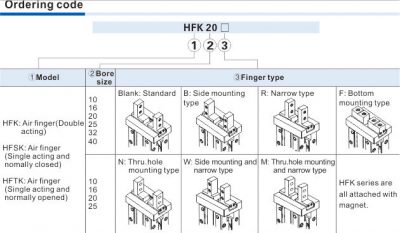

Ordering Code:

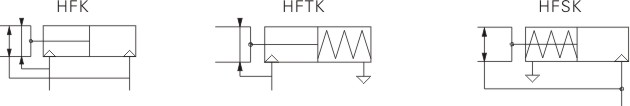

Symbol:

a   a   a

CLICK ABOVE FOR DOWNLOAD
