Airtac M5 Series Valve

Product Feature:

1. Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.

2. The external force required by direction-change of series of M5B, M5R and M5L is provided by external mechanism, which can be used for position test or [stroke switch] limit switch.

3. M5C,M5D,M5Y,M5PF,M5PM,M5PP,M5PL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.

4. It is in sliding column structure that the control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.

5. Lubricant is not necessary.

6. Multi-mounting makes it convenient to install and apply.

7. The control joints of series of M5C,M5D,M5Y,M5R and M5L are made of metal which has longer service life and more reliable and steady performance.

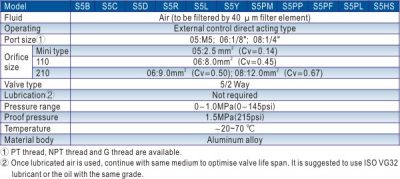

Specification:

Installation & Usage:

1) The control set is made of engineering plastic which only allows manual operation and switching valves through metal impact is forbidden.

2) The series of M5B, M5C, M5D, M5PM, M5PF and M5PP get the function of automatic restoration. The hand valves of M5Y, M5HS and M5PL are in the type of manual restoration. M5PL will be restored by turning the revolve button after being pressed into orientation.

3) Pay attention to the reversing stroke. The reversing stroke can not surpass its stroke stipulated in stroke control table when the direction-change of the valve is forced by any external forces,otherwise it will cause the damage of the valve.

4) The M5L can only switch the valve in single direction (impact from right to left). The impact from the other direction is invalid (from left to right).

5) Control joint combination can be ordered individually.Please refer to the table on the right for order details.

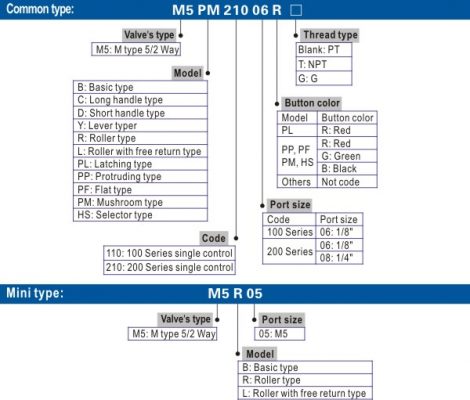

Ordering Code:
