Airtac ZM3 Series

Product Feature:

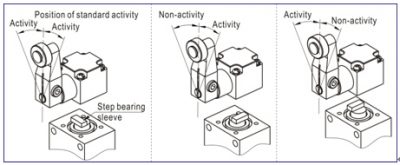

1. The activity direction could be changed(Only adapt to standard type, large angle type unavailable)

2.The rolling wheel could be installed at the inside of leverage

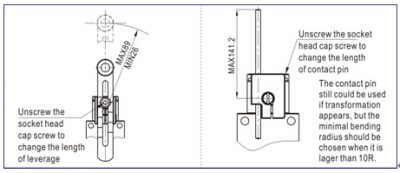

3.Installation position of leverage could be changed

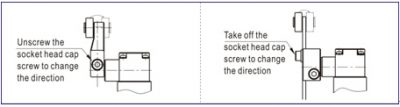

4. Direction of head part could be changed

5. Length of contact pin could be changed

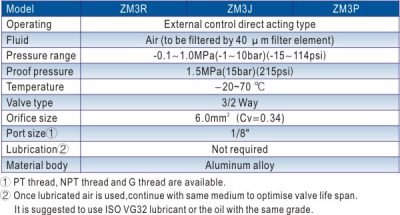

Specification:

Installation & Usage:

1. Before installing, be sure the valve hasn’t been damaged via transportation.

2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3. Please notice whether the installation condition accords with technical requirements (such as “working pressure” and “scope of application temperature”), then the equipment can be installed and used.

4. Take measure to avoid vibration and frozen.

5. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread seal tape is used correctly.

6. To keep the dust away, Never forget to install dirt-proof boot in air intake and outlet during dismounting.

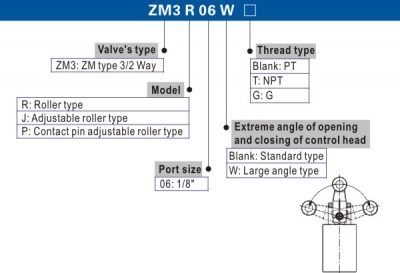

Ordering Code:
