Airtac NRV Series Valve

Categories: , , Tags: ,

Product Feature:

1. There are many port sizes: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″.

2. It allows the fluid to flow in one direction ONLY.

3. It is prevent backflow due to sudden drop in pressure or decrease in air consumption .

4. There is large valid area of section.

5. The spool is made of POM, valve’s core sealed with rubber, and it has a compact structure.

Specification:


Installation & Usage:

1. Before installing, be sure the valve hasn’t been damaged via transportation.

2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3. Please notice whether the installation condition accords with technical requirements (such as “working pressure” and “scope of application temperature”), then the equipment can be installed and used.

4. Take measure to avoid vibration and frozen.

5. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread seal tape is used correctly.

6. To keep the dust away, Never forget to install dirt-proof boot in air intake and outlet during dismounting.

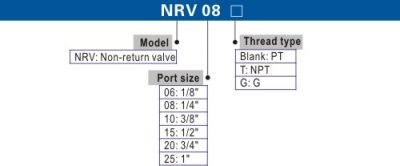

Ordering Code:

a   a   a

CLICK ABOVE FOR DOWNLOAD
