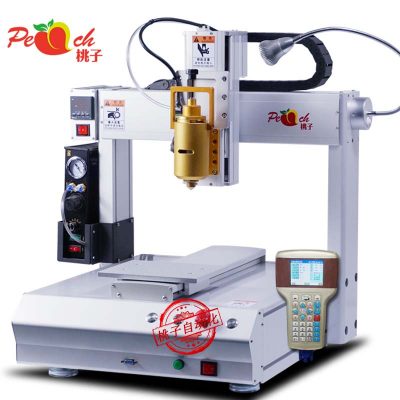

MODEL:- TZ-PUR331 three-axis hot melt automatic dispensing machine
our superior equipment and process services
- Special hot melting point rubber head, uniform glue, broken glue, no drawing;
2, Yu electric thermostat, imported heating core, heating up quickly, temperature deviation is less than 2 degrees;
3, aluminum profile molding structure, solid, beautiful, temperature, high precision;
4, single-chip control + handheld box programming, simple and practical, full-featured, efficient use;
5, Japan’s Shinano Motor, Taiwan’s silver rail, Germany’s Omron Optoelectronics, Japan’s three stars. Belt, research control drive, flood switch, high configuration parts, durable;
6, we provide free sample service, first proofing to see the effect, and then rest assured to buy goods;
7, we provide a one-year free warranty service, peace of mind to use;
8, we provide free technical training, process guidance, production import support.
| TZ-PUR331(Three axis platform ) | |
| model | TZ-PUR331 three-axis hot melt automatic dispensing machine |
| Dispensing range X/Y/Z (mm | 331 |
| Programming mode | Teaching programming or graphic import |
| Motionable graphics track | Points, lines, arcs, full circles, curves, polylines, spirals, ellipses |
| Dispensing head | Special hot melt adhesive head |
| Dispensing bucket | 30ml syringe hot melting point plastic head |
| Minimum discharge | 0.01ml |
| Glue frequency | 5 times / sec |
| Maximum load | 10kg |
| Movement speed (mm/sec) | 0–500 |
| Repeatability | ± 0.02 mm |
| control method | MCU + handheld box |
| Number of program records | 100 groups |
| Display method | LCD teach pendant |
| Motor system | Japan Shinano Motor |
| driver | Research control |
| guide | Taiwan silver |
| Omron | Photoelectric switch |
| transfer method | Timing belt |
| Input power | Full voltage AC110V ~ 220V |
| External control interface | RS232 |
| Dimensions | 540*580*650 |
| Body weight (kg) | 58 KG |
