Airtac ASC Series Valve

Categories: , , Tags: ,

Product Feature:

1. Small and compact structure.

2. Allows air to exhaust and cut off air flow. The adjustment screw is both sensitive and precise.

3. Can be mounted in various position to facilitate installation and application.

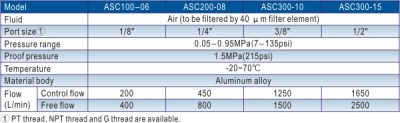

Specification:


Installation & Usage:

1. Before installing, be sure the valve hasn’t been damaged via transportation.

2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.

3. Please notice whether the installation condition accords with technical requirements (such as “working pressure” and “scope of application temperature”), then the equipment can be installed and used.

4. Take measure to avoid vibration and frozen.

5. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread seal tape is used correctly.

6. To keep the dust away, Never forget to install dirt-proof boot in air intake and outlet during dismounting.

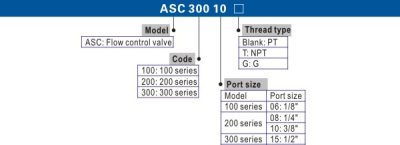

Ordering Code:

a   a   a
CLICK ABOVE FOR DOWNLOAD
