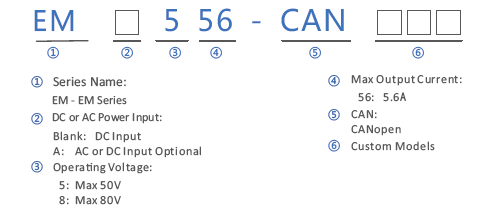

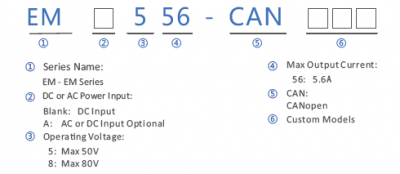

EM-CAN Series – EM-CAN Series EtherCAT Stepper Drives

Highlights: No loss of step, No hunting, No torque reservation HMI, PLC or External I/O start motion 7 Programmable Inputs: Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs 3 Programmable Outputs: Alarm, Brake, Homing / Instruction / Path complete Modes of Operation: Velocity, Position, Homing Support Functions: Teaching, Interrupt, Skip, Suspend, [...]

Highlights: No loss of step, No hunting, No torque reservation CS3E support standard EtherCAT protocol with operation modes of PP, PV, CSP, HM 7 configurable digital inputs, 7 optically isolated digital outputs include brake output USB port for parameters configuration Two 7-segment display velocity or slave ID or operation mode or error code Encoder resolution: [...]

Highlights: Input voltage 24-48VDC, output peak current 0-8.0A Closed-loop, eliminates loss of synchronization No Tuning and always stable Do not need a high torque margin Broader operating speed range Reduced motor heating and more efficient Smooth motion and super-low motor noise Protections for over-voltage, over-current and position following error Introduction: To solve the challenge of [...]
