EM3E Series – EM3E Series EtherCAT Stepper Drives

Categories: , ,

Highlights:

  • Support CoE control and CiA 402 protocols
  • Maximum communication rate of 100 Mbps
  • Simplicity & High reliability
  • Max 80VDC input voltage
  • Max 7.0A output current
  • Power Nema 8-34 stepper motors
  • Excellent performance
  • High reliability
  • Competitive cost

Introduction:

Leadshine EM3E series consists of stepper drives with EtherCAT communication bus supporting standard CoE control and CiA 402 protocols. Those stepper drives have excellent performance and are able to power 2-phase stepper motors of frame size 8, 11, 14, 17, 23, 24, and 34.

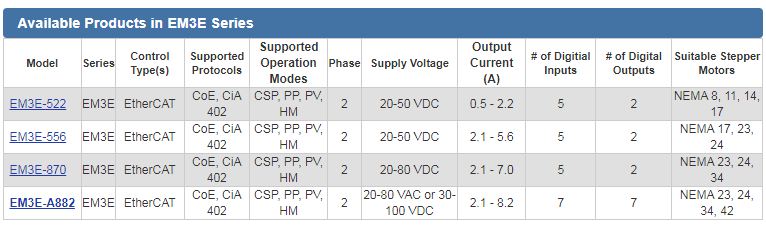

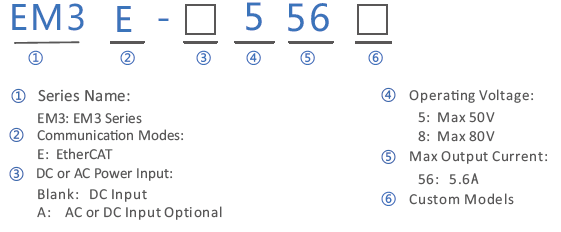

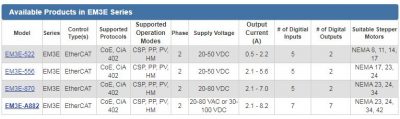

Part Numbers:

a

CLICK ABOVE FOR DOWNLOAD
