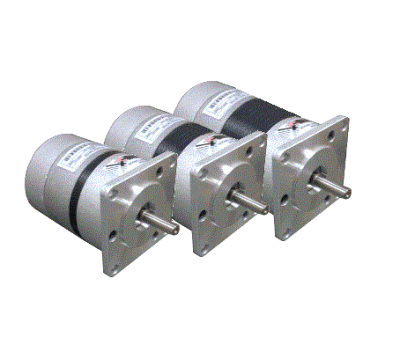

Highlights: Brushless construction Reliable industrial quality High torque density Resolution of the integrated encoders optional Metric 60 mm frame sizes Rated power from 100 W to 400 W Standard cabling options for direct connection to the ACS series drives Introduction: The ACM series low-medium voltage AC servo motors offer high performance with models ranging from [...]
Highlights: Step/direction and CW/CCW control Supply DC voltage up to 80 VDC Continuous current of 6 A and peak of 15/18A. Capable of driving 25-400W brushless DC servo motors High precision; low motor heating; low motor vibration Introduction: The ACS series fully digital AC servo drives are developed with 32-bit DSP control technology based on [...]
Highlights: Brushless construction Reliable industrial quality Resolution of the integrated encoders optional NEMA23 frame sizes Rated power from 25 W to 180 W Standard cabling options for direct connection to the ACS series drives Introduction: Leadshine’s BLM series motors are highly cost-effective brushless DC servo motors. Rated speed of BLM series motors is 3000 rpm. [...]
Highlights: Advanced DSP control technology Step & direction, or CW/CCW control 18 to 80 VDC supply range Up to 10 A continuous and 20 A peak current Continuous output power up to 400W Opto-isolated inputs Capable driving servo motors with single-ended or differential signals Tuning software tuning for optimal performance Introduction: Leadshine DCS series drives [...]
Highlights: Reliable quality Available power in 50W, 80W, and 120W Peak torque from Integrated 1,000-line differential-ended encoders. 500-line optional. High precision; low motor heating; smooth movement 54 mm framesize compatible with Pittman 14000 series; NEMA 23 optional Introduction: Leadshine DCM series brushed DC servo motors are made of high quality materials. They are at industrial [...]
Highlights: Available in NEMA 17, 23, and 34 Integrated brakes High precision Excellent performance High reliability Introduction: High performance closed loop stepper motors with integrated rotary encoders and 24 brakes. NEMA 17-34 frame sizes; high precision; low noise; smooth movement
Highlights: Latest design & advanced manufacturing technologies NEMA 17, 23, 24, and 34 High reliability and high precision Low motor heating; low noise Smooth movement Available Products in CM Series: Part Numbers:
Highlights: Reliable quality Easy to connect Various cable lengths Introduction: To make wiring and connecting easier, Leadshine offers various types of cables, connectors, and breakout board for its motion controllers. These accessories can help the users to build or test their motion control systems in a quick and easy way.
Highlights: No loss of step, No hunting, No torque reservation HMI, PLC or External I/O start motion 7 Programmable Inputs: Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs 3 Programmable Outputs: Alarm, Brake, Homing / Instruction / Path complete Modes of Operation: Velocity, Position, Homing Support Functions: Teaching, Interrupt, Skip, Suspend, [...]
Highlights: No loss of step, No hunting, No torque reservation CS3E support standard EtherCAT protocol with operation modes of PP, PV, CSP, HM 7 configurable digital inputs, 7 optically isolated digital outputs include brake output USB port for parameters configuration Two 7-segment display velocity or slave ID or operation mode or error code Encoder resolution: [...]
Highlights: Step & direction or CW/CCW control Advanced DSP-based current control algorithm Low-middle speed anti-resonance Extra low noise; extra low motor heating; smooth motor movement Easy setup via DIP switches for microstepping resolution and output current Free software for fine tuning, output current, resolutions… Automatic stepper motor identification and self configuration Introduction: Leadshine’s DM series digital stepper [...]
Highlights: NEMA 23 to 42 frame size Holding torque of 0.9 to 20 N.m (128 – 2,832 oz-in) Integrated 1,000-line encoders, higher resolution optional High precision Low motor heating Smooth motor movement Widely implemented in OEM applications Introduction: Leadshine offers Closed Loop Stepper Motors (stepper motors with encoders) from NEMA 23 to 42 with torque [...]
Highlights: Single phase 220VAC input Power range from 400W to 1000W Pulse&dir/ RS485/ CANopen communication Position/ velocity/ torque control Easy tuning, flexible to control Automatic identification for motor type 17-Bit/ 23-Bit absolute encoder Introduction: EL6 Series AC servo products are cost-effective AC digital servo which is designed for position high accurate control, power range up [...]
Highlights: Brushless construction Reliable industrial quality High torque density Resolution of the integrated encoders optional Metric 60 mm frame sizes Rated power from 50 W to 750 W Standard cabling options for direct connection to the ELD2 series drives Introduction: The ELDM series low-medium voltage AC servo motors offer high performance with models ranging from [...]
Highlights: Easy tuning, flexible to control Automatic identification for motor type RS485/Modbus/EtherCAT Notch filter, Damping filter Dynamic brake 17-Bit/23-Bit absolute encoder Internal resistor Introduction: ELP series AC servo products are high performance AC digital servo which is designed for position/velocity/torque high accurate control,power range up to 2kW and it can provide intelligent performance with easy [...]
Highlights: Support CiA 301/402 communication protocols Maximum communication rate of 1 Mbps Simplicity & High reliability High compatibility with popular CANopen master controllers Max 80 VDC input voltage Max 8.2A output current Power NEMA 8-42 stepper motors Excellent performance Hig reliability Lower cost Introduction: Leadshine EM-CAN series consists of stepper drives with CANopencommunication bus supporting [...]
Highlights: Step & Direction or CW/CCW control types Excellent torque performance (10-25% over Leadshine DM series) Convenient control command smoothing Fault output Powering stepper motors of NEMA 8,11,14,23,24,34 Simple setup CE certified and RoHS compliant Installation compatible with Leadshine DM, EM, M, and ND series Introduction: Leadshine EM-S Series consists of stepper drives upgraded [...]
Highlights: Standard Isolated RS485 Modbus HMI, PLC or External I/O start motion 7 Programmable Inputs: Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs 3 Programmable Outputs: Alarm, Brake, Homing / Instruction / Path complete Modes of Operation: Velocity, Position, Homing Support Functions: Teaching, Interrupt, Skip, Suspend, Circulate motion Matching Motors: NEMA8, [...]
Highlights: Support CoE control and CiA 402 protocols Maximum communication rate of 100 Mbps Simplicity & High reliability Max 80VDC input voltage Max 7.0A output current Power Nema 8-34 stepper motors Excellent performance High reliability Competitive cost Introduction: Leadshine EM3E series consists of stepper drives with EtherCAT communication bus supporting standard CoE control and CiA [...]
Highlights: 32-bit PCI Bus, plug and play 4-axis 28-bit counters, up to 5 MHz (X4 is 20 MHz) Counters for quadrature AB phase encoder or general purpose up/down counter Supports differential and single-ended inputs Latches 4 axes’ positions by 2 triggers with interrupt function Auxiliary +5V encoder supply 32 DI and 32 DO, 32 of [...]
Highlights: Reliable quality Various lengths Easy to connect Shielded for electrical interference. Introduction: Leadshine offers various industrial quality encoder cables for brushless servo motors, easy servo motors or stepper motors with encoders. These extension cables can meet different length requirements of feedback connections between the motors and drives.
Highlights: Servo control for stepper motors with encoders up to NEMA 34 Step & direction controls Max 100 VDC or 80 VAC operating voltage Load based output current up to 8.2A No Loss of steps No torque reservation No hunting and no overshooting No / little tuning for plug-and-play Introduction: Leadshine ES-D series easy servo [...]
Highlights: Servo control for stepper motors with encoders up to NEMA 42 Step & direction controls 110/120 or 220/230 AC input Load based current control No Loss of steps No torque reservation No hunting and no overshooting No power supply for plug-and-play No tunning for almost all applications Introduction: By taking direct 110 / 120 [...]
Highlights: No loss of steps, No tuning Low extra motor heating Higher torque at high speed Better performance of ES2 motors High torque at starting &low speed High Stiffness at standstill Better cost-effectiveness Smooth motion& extra low noise Current output based on load Lower energy consumption The ES2 series easy servos cleverly combined the [...]
Highlights: Input voltage 24-48VDC, output peak current 0-8.0A Closed-loop, eliminates loss of synchronization No Tuning and always stable Do not need a high torque margin Broader operating speed range Reduced motor heating and more efficient Smooth motion and super-low motor noise Protections for over-voltage, over-current and position following error Introduction: To solve the challenge of [...]
Highlights: 2 phase or 3 phase NEMA 14 to 42 Holding toque of 0.07 Nm to 28 N.m (9.9 – 3,965 oz-in) High precision Smooth movement Low motor heating Low movement noise Leadshine offers 2 phase 1.8° and 3 phase 1.2° hybrid stepper motors made of high quality materials. Their frame sizes are available [...]

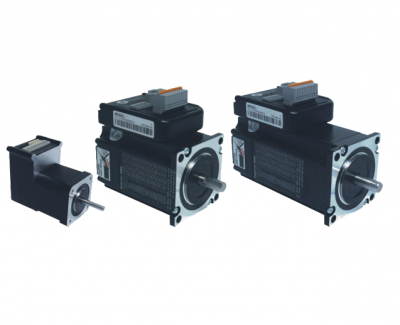

Highlights: Integrated design of motor + encoder + drive Stepper based servo control Closed position loop to eliminate loss of movement synchronization No torque reservation and always 100% implementation of available torque Load-based output current for extra low motor heating Smooth motor movement and low motor noise Quick response and acceleration No overshooting and almost [...]
Highlights: Servo motors integrated with high performance servo drives Minimized cabling Low cost Peak speed of 4,000 RPM Power up to 180W High precision, quiet and smooth motion Compact size and easy installation Introduction: Leadshine iSV series integrated brushless servo motors are highly integrated servo systems at very competitive costs. An iSV series integrated servo [...]
Highlights: Stepper motors integrated with drives Minimizing wiring and interference NEMA 17 and 23 Holding torque of 0.3 – 2.0 Nm (43 – 283 Oz-In) Step & direction control Smooth motor movement Extra low heating and noise Anti-resonance Automatic current deduction Features: 1. Highly integrated, Compact size, Stepper motor + Digital stepper drive 2. Extra [...]
Highlights: Industrial quality Frame sizes of NEMA 23 and 34 IP65 rated High precision High reliability Low motor heating Low vibration Smooth movement Introduction: Leadshine offers 2 phase Closed Loop stepper motors with 1,000-line incremental encoders and IP65 rate waterproof in frame sizes 23 and 34. These motor bodies are made of premium quality materials [...]
Highlights: Industrial quality Frame sizes of NEMA 23 and 34 IP65 rated High precision High reliability Low motor heating Low vibration Smooth movement Leadshine offers 2 phase hybrid stepper motors with IP65 rate waterproof in frame sizes 23 and 34. These motor bodies are made of premium quality materials including bearings and shafts from Japanese [...]
Highlights: Specially designed to power stepper and servo systems Simple design for high reliability Quick response to constant current change Excellent in resisting in electronical interference 3 main outputs plus 1 auxiliary output 220 VAC ± 10% input. Output voltage of 36 or 68 VDC with up to 500W rated power Short circuit and over-voltage [...]
Highlights: Reliable quality Easy to connect Various cable lengths Introduction: Leadshine offers miscellaneous industrial quality accessories such as communication cables, USB to RS232 converters, connectors, etc, which has been tested and confirmed working fine with Leadshine products.
Highlights: Reliable quality Various lengths Easy to connect Introduction: Leadshine offers various industrial quality motor cables for brushless servo motors, easy servo motors or stepper motors with encoders. These extension cables can meet different length requirements of feedback connections between the motors and drives. Available Products:
Highlights: 4 axis motion controllers for step and direction control of stepper and servo systems. 32-bit PCI-Bus plug and play High performance for linear interpolation and circular interpolation Trapezoidal and S-curve velocity profiles Demo software for verifying and testing a motion control system Free motion libraries supporting Windows 95/98/NT/2000/XP/7 Supporting programming languages like Leadshine Basic, [...]
Highlights: 1.8-multiple of current overload Compact Size, Light in Weight Use Switch to select input voltage 220VAC±10% or 110VAC±10% Over-current, Over-voltage, Low-voltage Protections Big Power with High Efficiency CE and RoHS Introduction: In stepper and servo systems, frequent speed and torque changes result in frequent current changes drawing from power supplies. When accelerating, servo / [...]
Highlights: Advanced control algorithm Step & direction, CW/CCW, Modbus/RS485, CANopen 24-70 VDC voltage input Powering brushless servo motors to 1.5 kW. High precision, smooth & quiet motor movement Cost effective Introduction: High performance DC brushless servo drives powering a wide range of servo motors up to 1500 W. These servo drives can operate up to [...]
Highlights: Support BASIC or G code in stand-alone mode High speed linear interpolation and circular interpolation Multi-axis continuous interpolation Support touch screen and USB flash disk, easy-to-use Ethernet motion controller available, supports multiple masters and slaves Introduction: Leadshine is distinguished from others by providing motion controllers that are highly reliable, cost-effective, and easy-to-use. Leadshine’s SMC [...]
Highlights: Reliable industrial quality High torque density Rated power from 100 W to 2KW Frame size options of 40mm, 60 mm, 80 mm and 130 mm encoder options of 2,500-line, 5,000-line, 17-bit, and 23-bit Introduction: Leadshine ELM series high voltage brushless AC servo motors provide applications with high torque density to attain high acceleration capability [...]
Highlights: NEMA 17 to 34 frame size Integrated 1,000-line encoders High precision Low motor heating Smooth motor movement Introduction: Leadshine offers Closed Loop Stepper Motors (stepper motors with encoders) of NEMA 17 to 34 integrated with 1,000-line incremental encoders. Made of high quality materials such as Japanese made bearings and shafts, those closed loop stepper [...]
Highlights: Industrial quality Frame sizes of NEMA 17, 23, 24, and 34 Integrated 24 VDC brakes High precision High reliability Low motor heating Low vibration Smooth movement Leadshine offers 2 hybrid stepper motors with 24 VDC brakes in frame sizes 17, 23, 24, and 34. These motor bodies are made of premium quality materials including [...]
Highlights: 1.8 or current overload Compact Size, Light in Weight Use Switch to select input voltage 220VAC±10% Over-current, Over-voltage, Low-voltage Protections Big Power with High Efficiency CE and RoHS Introduction: In stepper and servo systems, frequent speed and torque changes result in frequent current changes drawing from power supplies. When accelerating, servo / stepper drives [...]
